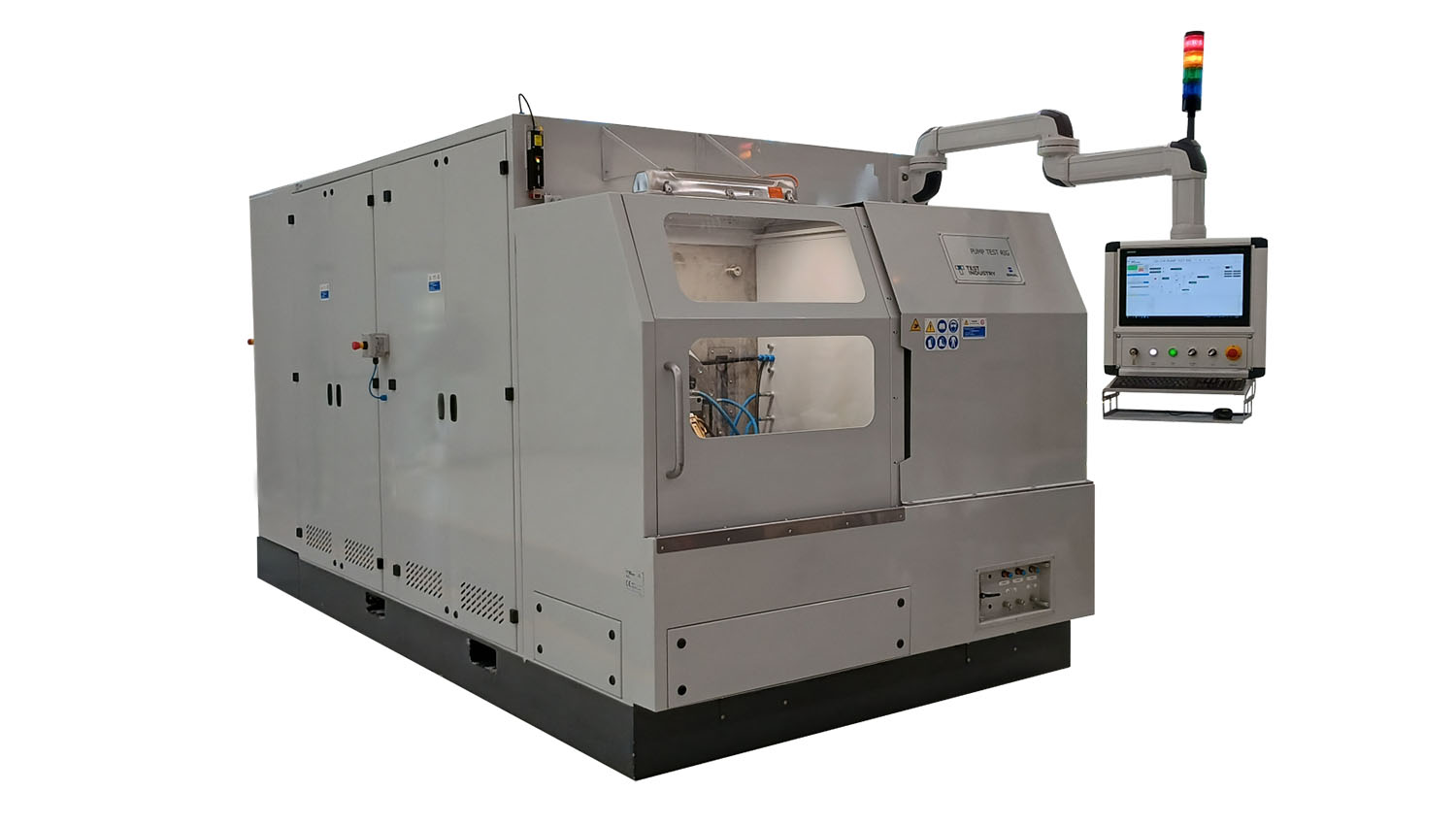

AIRCRAFT FUEL PUMPS TEST RIG
Cod.TI240006
Request information
Description
Test rig designed to perform qualification and ATP tests on aerospace fuel pumps, including break-in run test and sea-level calibration.
The test bench works with Jet A1 fuel, therefore it is designed in compliance with the Atex Directives.

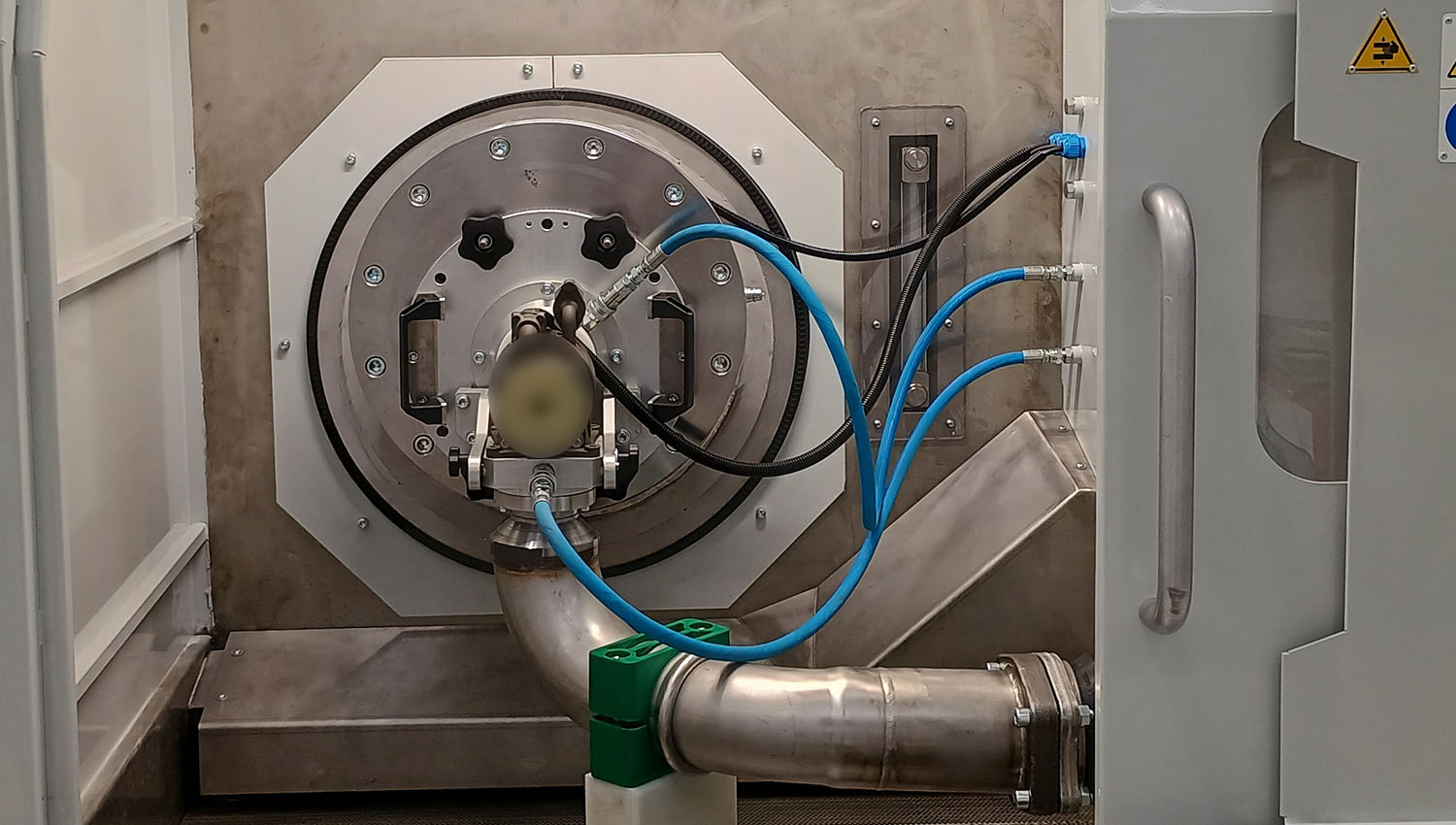

The operator must manually install the DUT in the ergonomic test area and connect it to the hoses provided with quick-connections. The operator safety is ensured by the sliding door equipped with interlocking system.
The test execution is fully automated and test recipes can be fully configured.
The test rig is equipped with an integrated power analyzer and a fully programmable power supply, in order to adjust voltage and frequency supply.
Performed tests
-
Break-in run
-
Sea-level calibration
