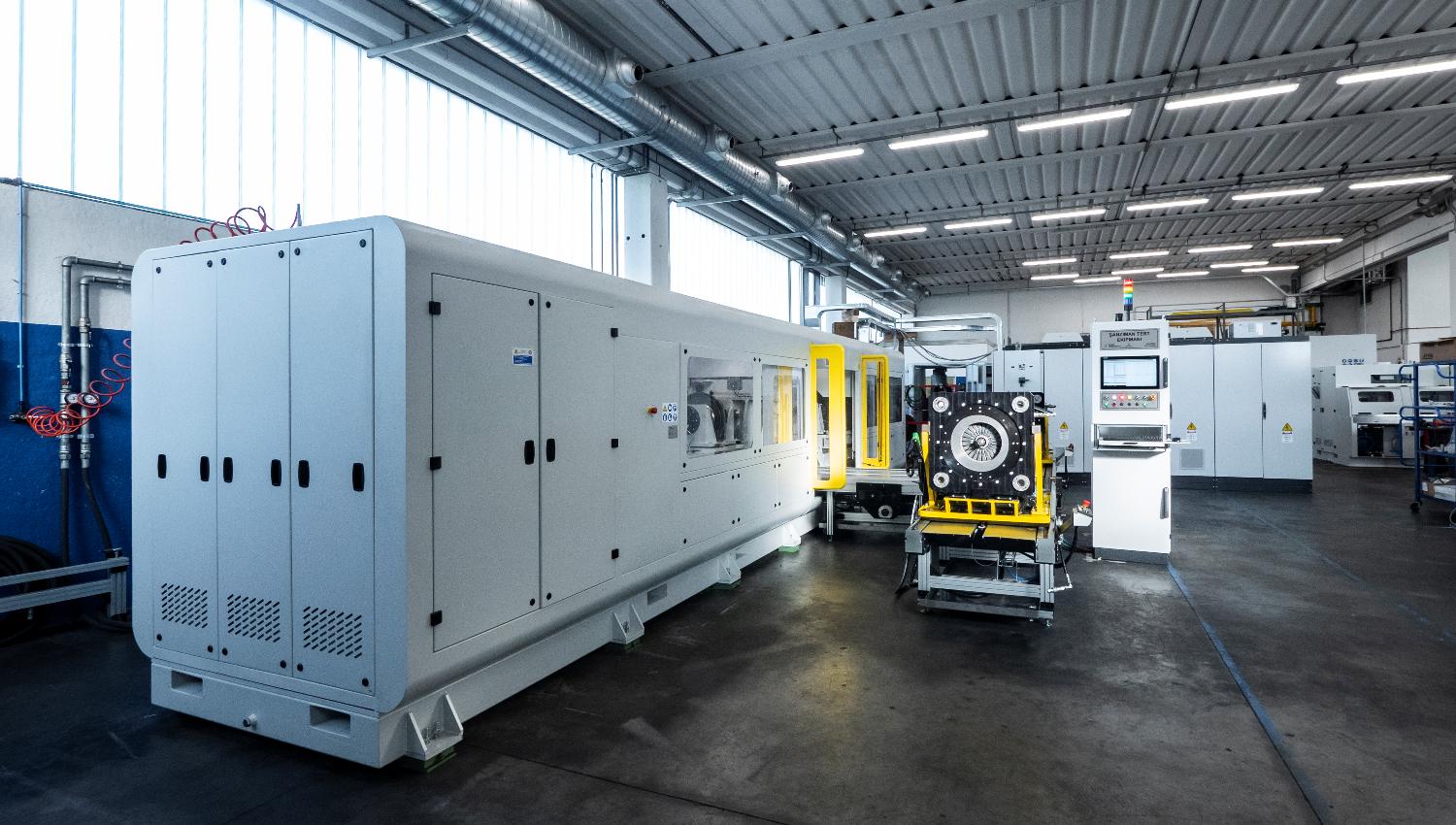

TEST BENCH FOR AUTOMOTIVE GEARBOXES

Cod.1174

Request information

Description

This test bench is dedicated to the automatic end-of-line testing of automotive gearboxes, both automatic (AMT) and manual (MT), both overdrive and direct transmission.

The main features of this test bench are:

– Integration with the assembly line
– Automatic transmission locking
– Testing via CANBUS (for automatic transmissions)
– Gear change via robot (for manual gearboxes)
– Integrated NVH analysis
– Closed circuit energy recovery system
– Pallet traceability via RFID
– Transmission identification via barcode reader

Tests performed

Functionality tests
NVH analysis
ECU flashing
On-board sensor control
Load tests
Power loss check
